Description Product

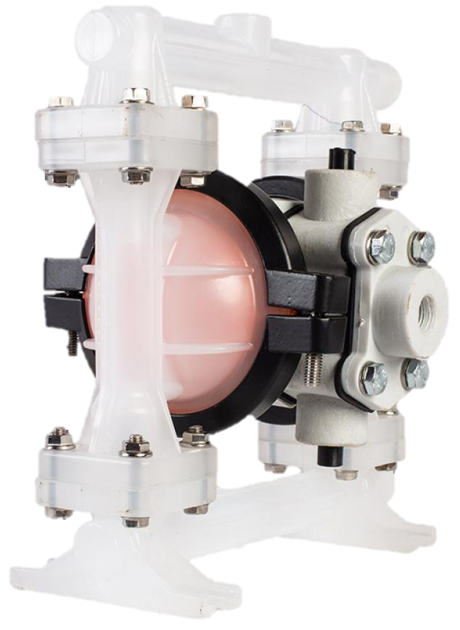

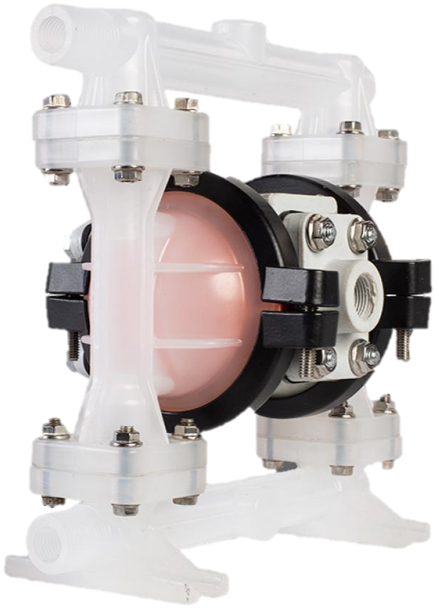

HP02 Y Plastic Body AODD Pumps Technical Data

Max. Capacity                          : 16 lpm

Intake/Discharge Size           : 1/4" (inch)

Fluid Discharge Pressure    : 7 bar

Main Body                                 : Polypropylene, PVDF

Diaphragms                             :  Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Balls                                          : Santoprene, Neoprene, Buna-N, EPDM, PTFE, Viton

Ball Seats                                 : Santoprene, Teflon

Air Inlet Size                             : 1/4" (inch)

Solids - Handling                   : 1mm

Suction Depth                          : 1m-1,5m

Operating Pressure Max      : 7 bar

AREAS OF USAGE:

1-CHEMICAL INDUSTRY: For transfer acids, alkalis, solvents, alcohols

2-REFINING INDUSTRY: For using as dosage, circulation pump, filter press pump

3-TEXTILE INDUSTRY: Transferring textile chemicals

4-PACKAGING INDUSTRY: Transfer and storage of products such as glue, resins, paint, varnish, ink

ADVANTAGES:

1-Corrosion-resistant

2-Pumps can use for transferring fluids which contains particles

3-Maintenance is easy and costs are low

4-Flow rate can adjust with change inlet air pressure.

5-Pumps can work without fluids.

6-Suction depth is 1.5 meter.
