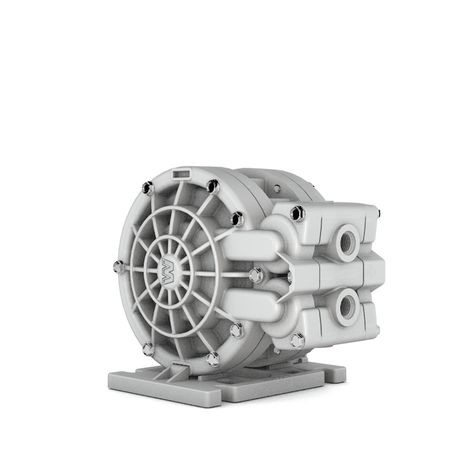

WILDEN AODD PUMP, 0.25" VELOCITY, BOLTED PVDF, NPT W/SANTOPRENE
V2550/KKPPE/ZWS/WF/KWF
Part Number: 00-10143
Brand: wilden
Body: PVDF
materials: SANTOPRENE
Size: ΒΌ"
Description Product
As part of the Wilden® Velocity Series compact AODD pumps, this pump was designed with versatility. Featuring a unique, detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or hoizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.
- Numerous mounting configurations
- 14.2' (4.3 m) maximum dry suction lift
- Low minimum startup pressure
- Bore-seal design to eliminate torque decay leaks
- Interchangeable footprint with previous Wilden designs (P.025, P25)
- Dry run without damage
: Velocity : V2550 : 0.25" (6 mm) : 0.25" (6 mm) : PVDF : Bolted : NPT : EZ-Install : Full Stroke : 5.7 gpm : Santoprene : PVDF : Santoprene : 1:1 : 100 psi : 1/32" (0.8 mm) : 10 F : 175 F : Santoprene : 4 lbs (1.8 kg)
