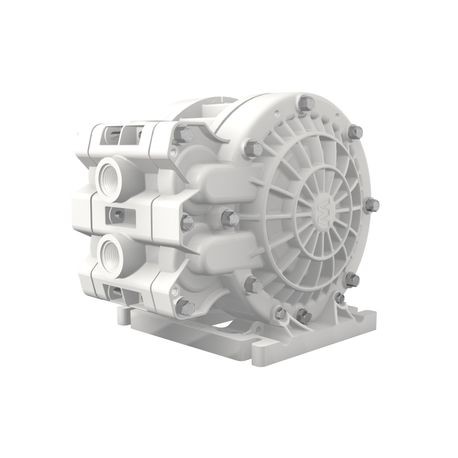

WILDEN AODD PUMP, 0.5" VELOCITY, BOLTED POLYPROPYLENE, NPT W/PTFE
V150/PPPPE/TSS/TF/PTV
Part Number: 01-11311
Brand: wilden
Body: PolyPropylene
materials: PTFE
Size: ½"
Description Product
As part of the Wilden® Velocity Series compact AODD pumps, this pump was designed with versatility. Featuring a unique, detachable mounting foot, Velocity Series pumps can easily be reoriented into a vertical or hoizontal position with multiple inlet and discharge port options, a critical consideration for systems and skids.
- Numerous mounting configurations
- 16.9' (5.1 m) maximum dry suction lift
- Low minimum startup pressure
- Bore-seal design to eliminate torque decay leaks
- Interchangeable footprint with previous Wilden designs (P1, P100)
- Dry run without damage
Features
| : | Velocity |
| : | V150 |
| : | 0.5" (13 mm) |
| : | 0.5" (13 mm) |
| : | Polypropylene |
| : | Bolted |
| : | Hytrel |
| : | NPT |
| : | Traditional |
| : | Full Stroke |
| : | 17 gpm |
| : | PTFE |
| : | Polypropylene |
| : | PTFE, Encapsulated FKM |
| : | 1:1 |
| : | 100 psi |
| : | 1/16" (1.6 mm) |
| : | 40 F |
| : | 175 F |
| : | PTFE |
| : | 8 lbs (3.6 kg) |
